- New

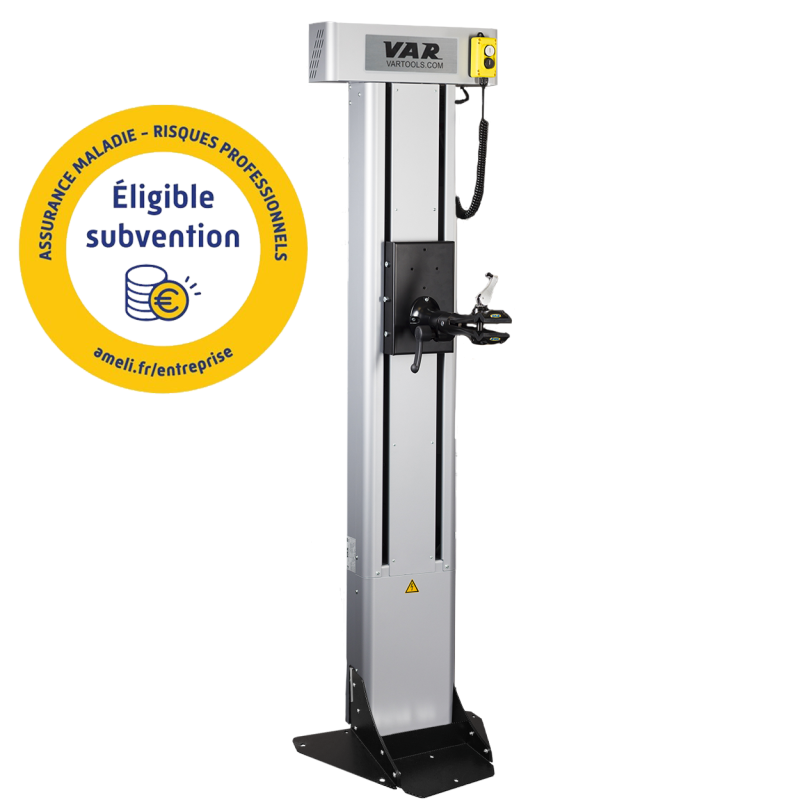

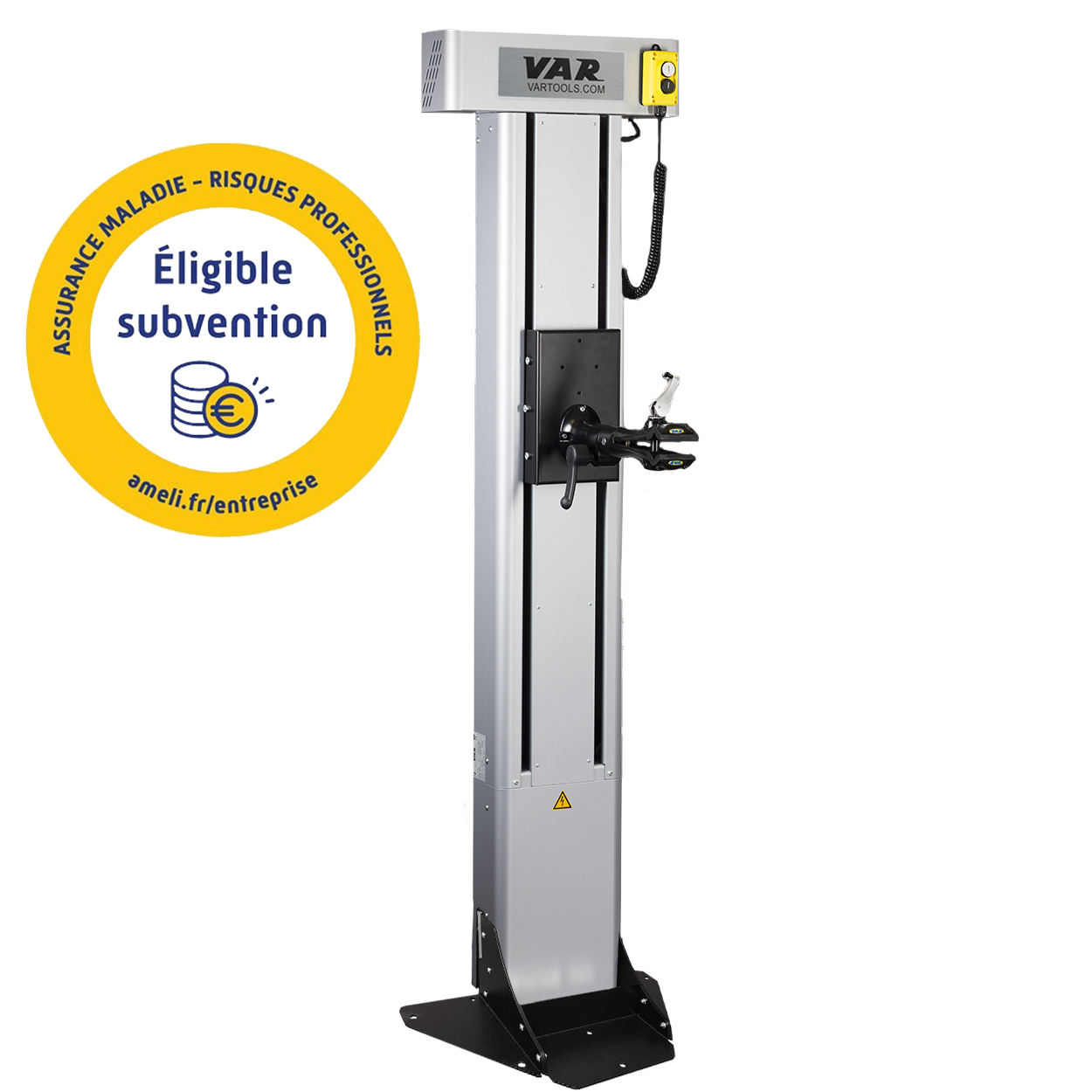

Electric repair stand with floor fastening - 1 clamp
Ref : PR-89100
EAN : 3435540891004
Warranty : 1 year
€3,690.00
Tax included
After a long phase of needs analysis, R&D, and testing, we are proud to present our new generation of electric repair stands. This fast, modular system significantly improves both your productivity and working comfort.
- PR-89100 single stand, convertible into a PR-89200 double stand using a second PR-89100 unit
- Clamp travel speed of 6.25 m/min, 50% faster than the previous model
- Automatic clamp stop at maximum and minimum positions, or as soon as a wheel touches the ground or an obstacle is detected
- Extendable wired remote control for an ergonomic and ultra-comfortable working posture
- Features the heavy-duty PR-72000 professional integrated clamp with 360° rotation. Its wide, adjustable opening (up to 88 mm) allows it to hold all tube shapes
- Our worm gear system is reliable, durable, silent, and maintenance-free
- Low noise level, 52 decibels at a distance of 1 metre
- Delivered fully assembled with its anchoring supports, ready for use
- Pre-configured for accessory additions (pre-drilled holes and threaded inserts). Modular design
- Designed and manufactured in France ▊▊▊
STANDARDS AND CERTIFICATIONS
- NF Standard (obtained through validation by a control office, focusing on risk analysis related to the use of the repair stand)
- CE Standard (in accordance with the current Machinery Directive NF EN60204)
- APAVE Inspected. ⚠ It is mandatory to anchor the stand to the ground in compliance with CE standards.
Technical information
Specification
Technical information
Specification
Maximum lifting capacity
85 Kgs
Full travel distance
1 mètre
Time to fully raise (full stroke)
9,6 seconds
Minimum height of clamp
645 / 785 mm
Maximum height of clamp
1650 / 1800 mm
Length of wired remote control cable
50 cm
Extended length of wired remote control cable
1,50 m
Height of remote control cable exit point from the stand
1,76 m
Power input
IEC 320 C13 industrial socket
Supply voltage (power cord provided)
230V~ 50Hz +/- 10%
Power consumption in standby / idle / maximum load
4,6 W / 75 W / 211 W
Electrical supply located on top of the stand
1,63 m
Power output socket for accessory power strip
IEC 320 C13 industrial socket
Output voltage of power output socket
230V~ 50Hz +/- 10%
Epoxy paint
RAL 9006
Manufactured from folded steel sheet
Dorsal plate to remove when converting a PR-89100 into PR-89200
Weight and dimensions
Specifications
Weight and dimensions
Specifications
Floor print
74 x 74 cm
Diameter of base plate holes
10,5 mm
Thickness of floor anchorages
8 mm
Total height of the repair stand
210 cm
Dimensions of a column
31 x 14 cm
Thickness of a column
14 cm
Length of a bicycle support arm
50 cm
Weight of a single-clamp PR-89100 repair stand
180 Kgs
WARRANTY
VAR PR-89100 and PR-89200 are covered 1 year from the invoice date.
The VAR warranty will not apply in the case of poor anchoring to the ground, modification, lack of maintenance, or misuse.
Download
Download the user manual
