VAR | Double electric repair stand with floor fastening - 85Kg
imageDownload image in high resolution

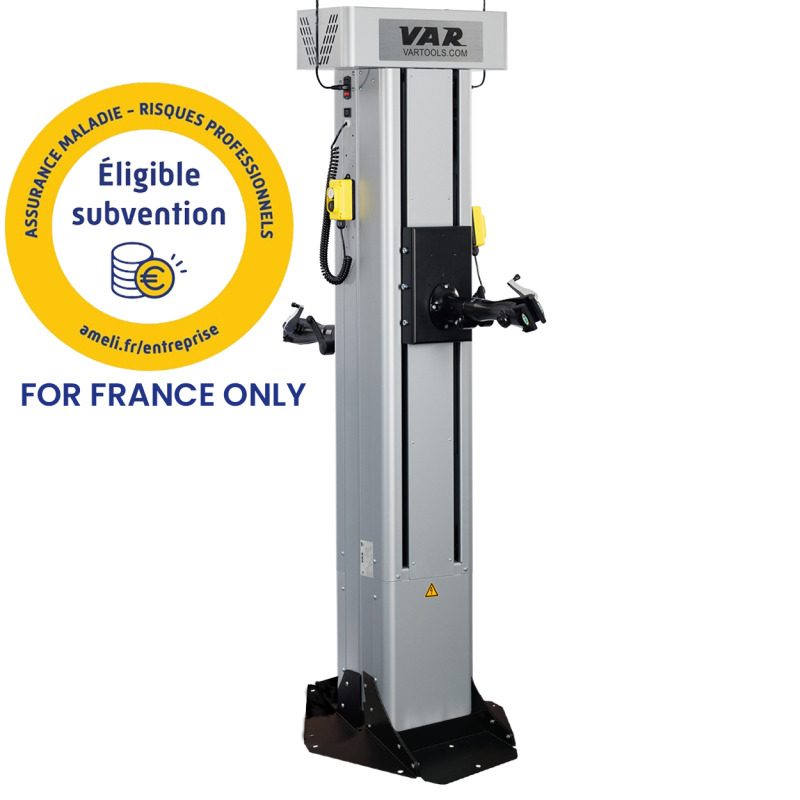

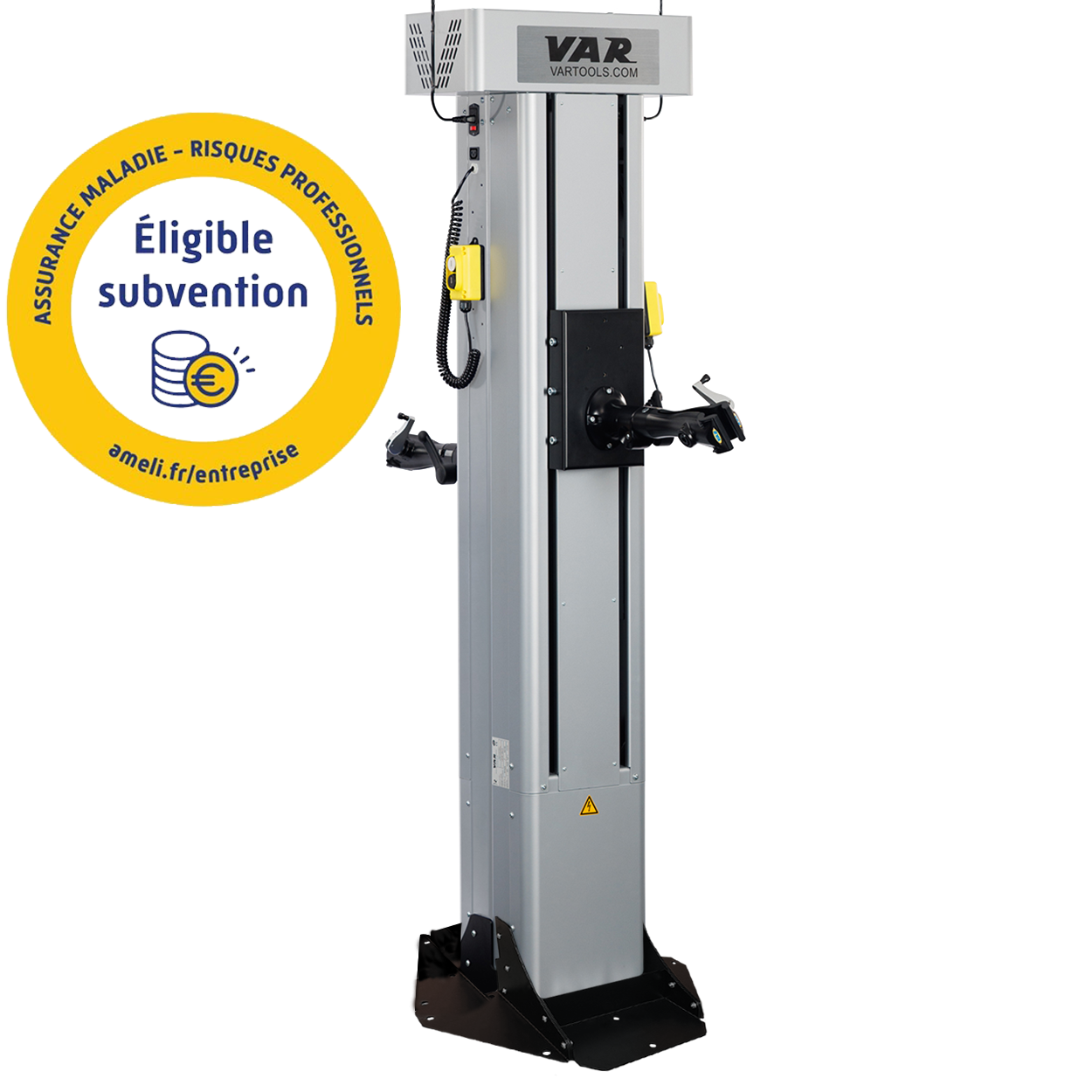

Double electric repair stand with floor fastening - 85Kg

Ref : PR-89200
EAN : 3435540892001
Warranty : 1 year
€7,890.00 Tax included
  • Independent operation of each column
  • Clamp travel speed of 6.25 m/min, 50% faster than the previous model
  • Automatic clamp stop at maximum and minimum positions, or as soon as a wheel touches the ground or an obstacle is detected
  • Extendable wired remote control for an ergonomic and ultra-comfortable working posture
  • Features the heavy-duty PR-72000 professional integrated clamp with 360° rotation. Its wide, adjustable opening (up to 88 mm) allows it to hold all tube shapes
  • Our worm gear system is reliable, durable, silent, and maintenance-free
  • Low noise level, 52 decibels at a distance of 1 metre
  • Delivered fully assembled with its anchoring supports, ready for use
  • Pre-configured for accessory additions (pre-drilled holes and threaded inserts). Modular design
  • Designed and manufactured in France ▊▊▊


STANDARDS AND CERTIFICATIONS

  • NF Standard (obtained through validation by a control office, focusing on risk analysis related to the use of the repair stand)
  • CE Standard (in accordance with the current Machinery Directive NF EN60204)
  • APAVE Inspected. ⚠ It is mandatory to anchor the stand to the ground in compliance with CE standards.
Technical information
Specification
Technical information
Specification

Maximum lifting capacity (per column)

85 Kg

Full travel distance

1 meter

Time to fully raise (full stroke)

9,6 seconds

Minimum height of clamp

645 / 785 mm

Maximum height of clamp

1650 / 1800 mm

Length of wired remote control cable

50 cm

Extended length of wired remote control cable

1,50 m

Height of remote control cable exit point from the stand

1,80 m

Number of wired remote controls

2 (1 per column)

Number of power inputs

2 (1 per column)

Power input

IEC 320 C13 industrial socket

Supply voltage (power cable provided)

230V~ 50Hz +/- 10%

Power consumption in standby / idle / maximum load

4,6 W / 75 W / 211 W

Electrical supply located on top of the stand

1,63 m

Power output socket for accessory power strip

2 (1 per column)

Output voltage of power output socket

IEC 320 C13 industrial socket

Power output

230V~ 50Hz +/- 10%

Manufactured from folded steel sheet

Epoxy paint

RAL 9006

Weight and dimensions
Specification
Weight and dimensions
Specification

Floor print

74 x 74 cm

Diameter of floor anchorage holes

10,5 cm

Thickness of floor anchorages

8 mm

Total height of the repair stand

210 cm

Dimensions of a column

31 x 14 cm

Dimensions of two columns

31 x 28 cm

Thickness of a column

14 cm

Thickness of two columns

28 cm

Length of a bicycle support arm

50 cm

Weight of a double repair stand PR-89200

180 Kgs

WARRANTY

VAR PR-89100 and PR-89200 are covered 1 year from the invoice date.

The VAR warranty will not apply in the case of poor anchoring to the ground, modification, lack of maintenance, or misuse.
